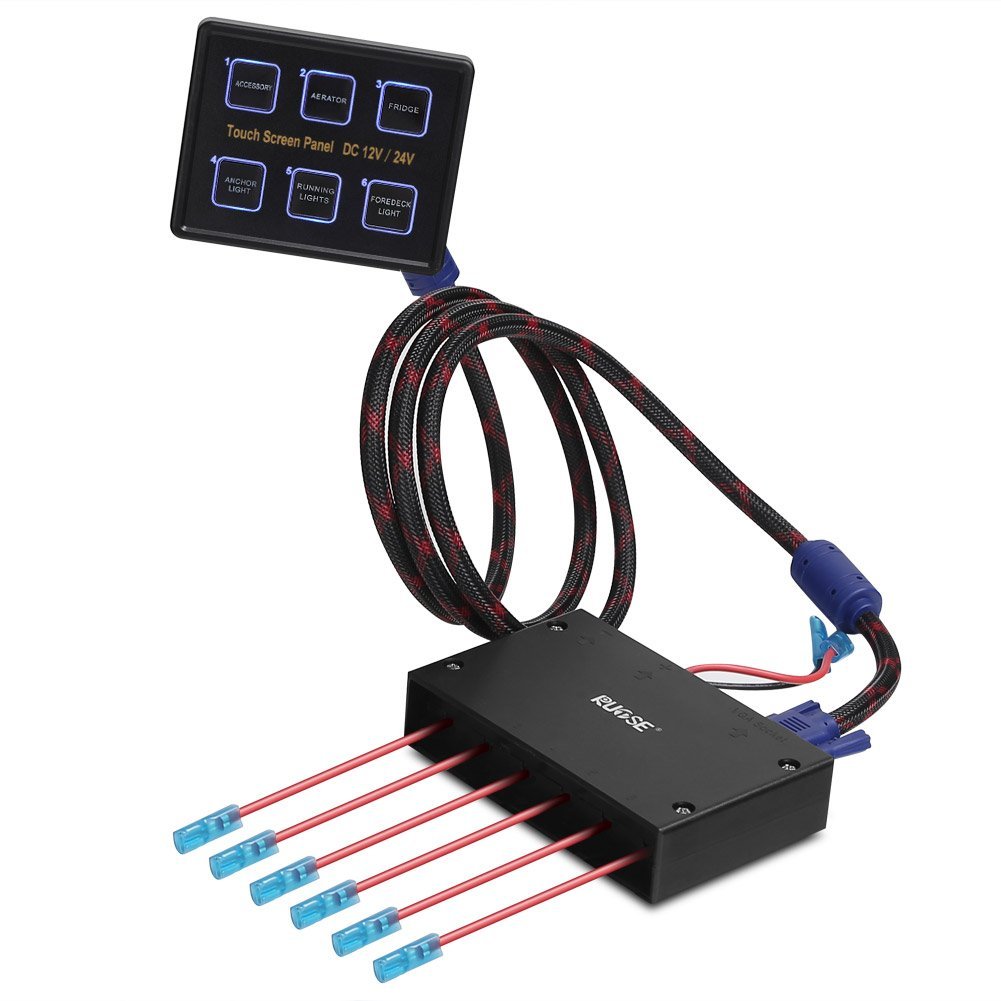

Features: * 6 In 1 Touch Control Panel Switch, with high sensitivity, LED display, and multi label stickers available for custom needs. * 12V/24V input voltage, fits refitting for cars, caravans, trucks, boats, yachts, etc. * Input current (DC) : 12V full load, input current 60A (Max 10A for one gang output, Max 60A for total current);24V full load, input current 40A (Max 10A for one gang output, Max 40A for total current) * Max rated power: output power 960W, on condition that input rated voltage and output current 10A, with 96 hours continuous working time. * Easy to install, with Reverse Polarity Protection, Overvoltage Protection and Overcurrent Protection, waterproof IP67.
Input voltage: 12-24V Output voltage: input voltage ±10% Indicator light: OFF: white ON: blue Temperature rise: 25 ℃ room temperature, 12V ~ 24V input voltage, total output 60A, housing surface temperature rise below 80℃ MTBF: at 25℃, normal input, 80% Max load as output, in 90% of cases,5000 hours as its MTBF
Environmental requirements: * Working temperature: -10°C ~ +50°C * Storage temperature: -20°C ~ +60°C * Operating humidity: 35~85% RH * Storage humidity: 5 ~ 95% RH * Product weight: 500g * Input wire material: 12 AWG 10-15cm MIN red * Output wire materials: 16 AWG 10-15cm red * Mounting way: Touch screen / 3m double-sided tape(76 x 76mm) Wiring box/M4 x 45mm stainless steel self-tapping screws
Package included: 1x Touch Control Panel Switch 1x Wiring Box 1x Sticker Manual 4x Screws
